ELASTOMER BELLOW MECHANICAL SEALS
Type RT-R10/RT-R11
- Single, low cost and mass production Mechanical Seal with Rubber Bellow.
- Central Point Non-Clogging Coil Spring Seal.
- Spring Design Seal is suitable for duel-direction of Shaft Rotation.
- Bellow Design Seals for Pressure supported and eliminates folds.
- Bellow Seals Protecting against Twisting.
- Unitize, easy-to-fit design seals
- Description
- Operating Data
- Material
- Application
Description

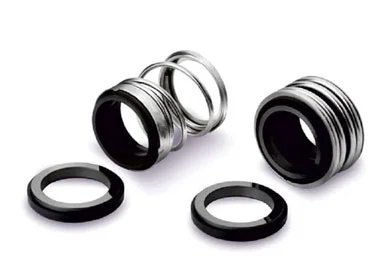

The Type RT-R10/RT-R11 is Rubber Bellow Mechanical Seal which is compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance.It is often found in water-based applications, such as wastewater treatment, potable water, HVAC, pool and spa and other general applications.And even with some Content with Abrasive and for a very wide operating condition designed for Centrifugal Pump.
We also manufacture and supply Single Spring Mechanical Seals, Multi Spring Mechanical Seals, Teflon Bellow Seals, Metal Bellow Seals and Reverse Balance Mechanical Seals as being top most mechanical seal manufacturers in Mumbai as well as known as one of the most precise mechanical seal manufacturing companies in India.
Shaft Dia. : 10mm to 100 mm
Pressure : Up to 8 bar
Temperature : -20°C to 180°C
Speed: 3000 RPM
Seal Ring Faces : Carbon, SiC and TC
Seat Faces :Carbon, Ceramic, SiC and TC
Elastomer : Viton, Neoprene, EPDM, NBR and Buna-N
MOC : SS 304 / SS 316
