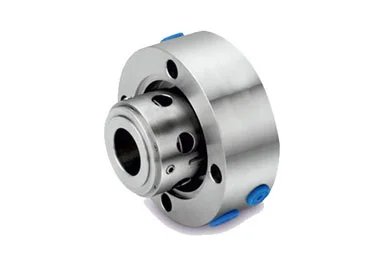

BALANCED CARTRIDGE MECHANICAL SEALS
Type RT-S60
- Single and Double Mechanical seal,
- Cartridge preassembled unit
- Inside Mounted
- Balance Mechanical face
- Easy Installation, Field repairable
- Interchangeable mating rings & seal ring
- Description
- Operating Data
- Material
- Application
Description
The Type RT-S64 is Balance Cartridge Mechanical having preassembled cartridge integral sleeve and gland plate. Balance Cartridge Mechanical seal is hydraulically balanced seal-face technology for reduced power consumption and heat generation enhancing seal life. It’s a non-contact type design where spring is prevented from clogging and corrosion. Multiple spring with rotating style and wave spring with demand by customer. Pressurized buffer fluid can be applied.
We also manufacture and supply Single Cartridge Mechanical Seals, Double Cartridge Mechanical Seals and High Pressure & Speed Balance as being top most mechanical seal manufacturers in Mumbai as well as known as one of the most precise mechanical seal manufacturing companies in India.
Shaft Dia. : 10mm to 100mm
Pressure : Up to 35 bar
Temperature : -30°C to 260°C
Speed : 3000 RPM
Seal Ring Faces : Carbon, TC and SiC
Seat Faces : Carbon, SiC and TC
Elastomer : Viton, PTFE, and FFKM
MOC : SS 316, HAST-C Alloy – 20
